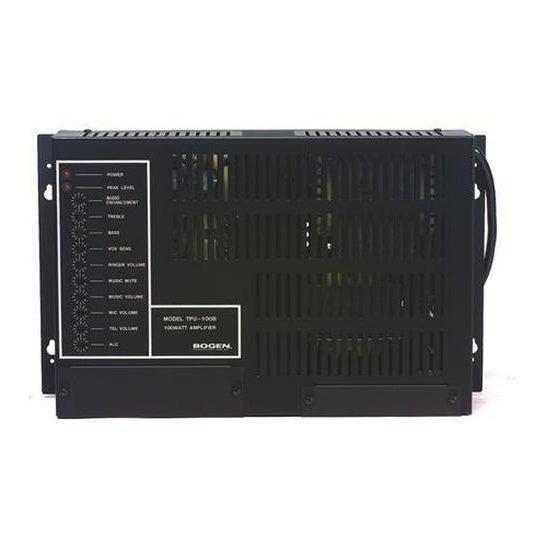

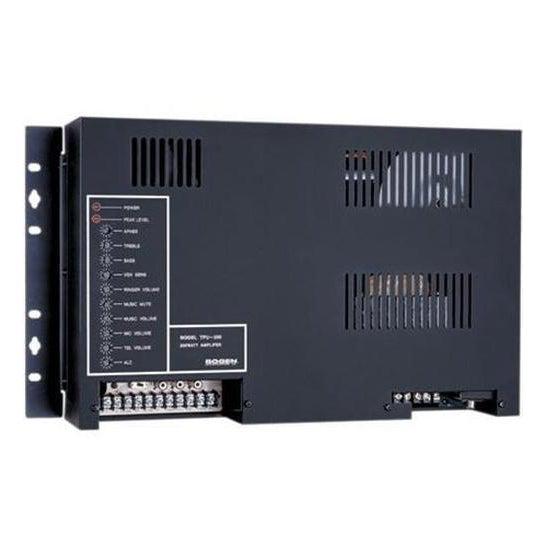

Bogen TPU100B 100 Watt Paging Amplifier
Bogen TPU100B 100 Watt Paging Amplifier
- Bogen 100 watt wall-mounted telephone paging amplifier
- Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
- Music input (RCA jack or screw terminals)
- Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
- Page from telephone and/or microphone
- Signal-activated paging channel automatically mutes background music
- TPU100B has adjustable background music muting level during a page
- Music gradually returns to its normal level after a page
- Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
- Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
- Bass and treble controls
- TPU100B has a built-in night ringer activated by contact closure or by 90V ring signal
- VOX sensitivity level control eliminates accidental transmission of background noise from a paging telephone
- Thermal and electronic overload protection
- Jacks provided for bridging additional TPU amplifiers
- Brackets are attached to each model for easy wall mounting; the TPU250 can also be rack-mounted with included brackets; TPU-B models can be rackmounted with RPK82 mounting kit (sold separately)
- Peak level indicator lights when amplifier is driven into clipping
- 120V AC, 60 Hz power source
- Listed to UL Standard 60065 for U.S. & Canada
- Bogen TPU-100B are wall-mounted telephone paging amplifiers rated at 100 watts.
- State-of-the-art in telephone paging
- Paging channel is signal-activated and automatically mutes background music when paging from a telephone
- Muting level of music during a page is adjustable, and the music gradually returns to its normal level after a page.
- Paging channel also has a VOX sensitivity adjustment to eliminate transmission of background noise
- Automatic output leveling to maintain constant output.
- TPU-B series incorporates the Aphex Aural Exciter circuit to regenerate the harmonics lost during the amplification process, resulting in increased presence and clarity, increased intelligibility, greater perceived loudness (with no increase in power)
