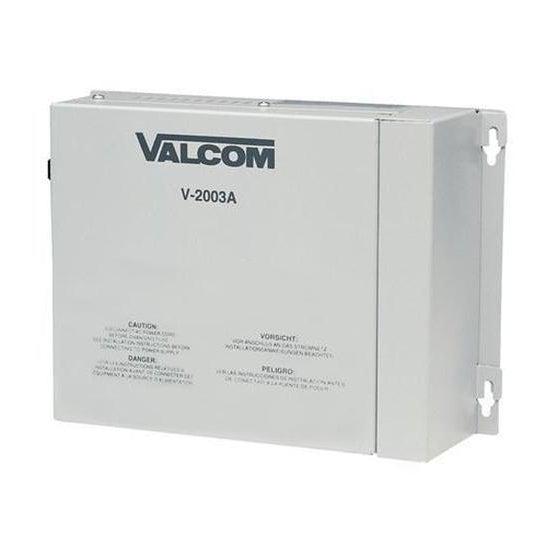

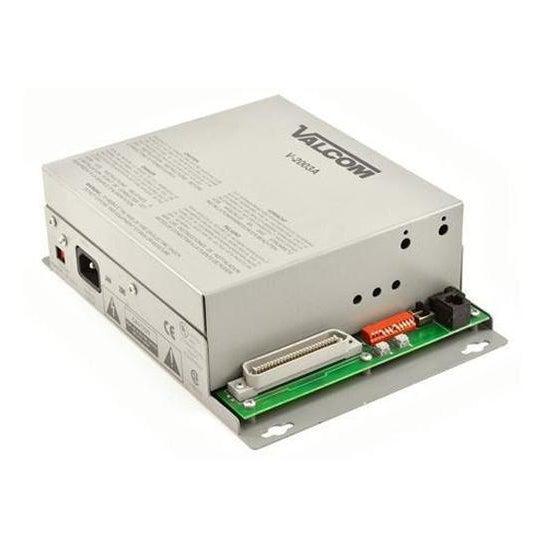

Valcom V-2003A Page Control

V-2003A
Valcom 3 Zone One-Way Page Control

Provides tandem all call. Background music input, automatically mutes in zone being paged
Page override for special priority announcements. Features are programmable per zone
Built-in tone generator for night ringing, time clock tone, doorbell
V-2003A accepts pulse and tone dial. Battery back-up input. To interface with analog extension or Centrex line add the VC-V-9970
Access: page port on selected telephone systems, PBX loop start or ground-start trunk port, electronic or 1A2 line key (line card required), or dedicated single line phoneset. Input impedance: 600 ohm.
Music source impedance: 4 to 600 ohm. Music input level: -10dBm nominal. DC output: -24 Vdc @ 500 mA.
Power requirements: 230 Vac/.5A or 120 Vac/1A.
Weight: 6.25lbs.
Dimensions: 7.1H x 10W x 3D.
