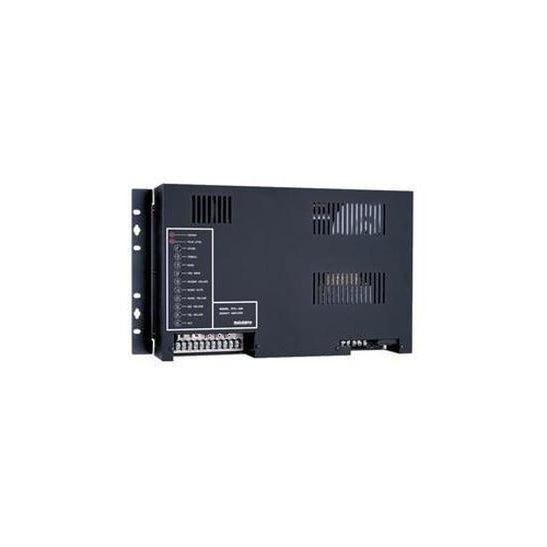

Bogen TPU35B 35 Watt Amplifier

Bogen TPU35B 35 Watt Wall-mounted Telephone Paging Amplifier

• Inputs for 600-ohm balanced telephone line, LO-Z balanced microphone, and background music
• Integral automatic level control circuit for controlling pages made by persons with varying voice levels and paging techniques
• Page from telephone and/or microphone
• Signal-activated paging channel automatically mutes background music
• TPU35B has adjustable background music muting level during a page
• Music gradually returns to its normal level after a page
• Aphex Aural Exciter increases intelligibility, improves perceived loudness with no increase in power
• TPU35B has seperate controls for page volume, music volume, night ringer, music mute and Aphex Aural Exciter
• Bass and treble controls
• Built-in night ringer activated by contact closure or by 90V ring signa
• Bogen TPU35B is Balanced or unbalanced 16-ohm, 25V, 25VCT, and 70V outputs
• VOX sensitivity level control eliminates transmission of background noise when paging from a telephone
• Thermal and electronic overload protection. Jacks provided for bridging additional TPU amplifiers
• Brackets are attached for easy wall mounting
• Peak level indicator lights when amplifier is driven into clipping
• 120V AC, 60Hz power source. UL and CSA listed
