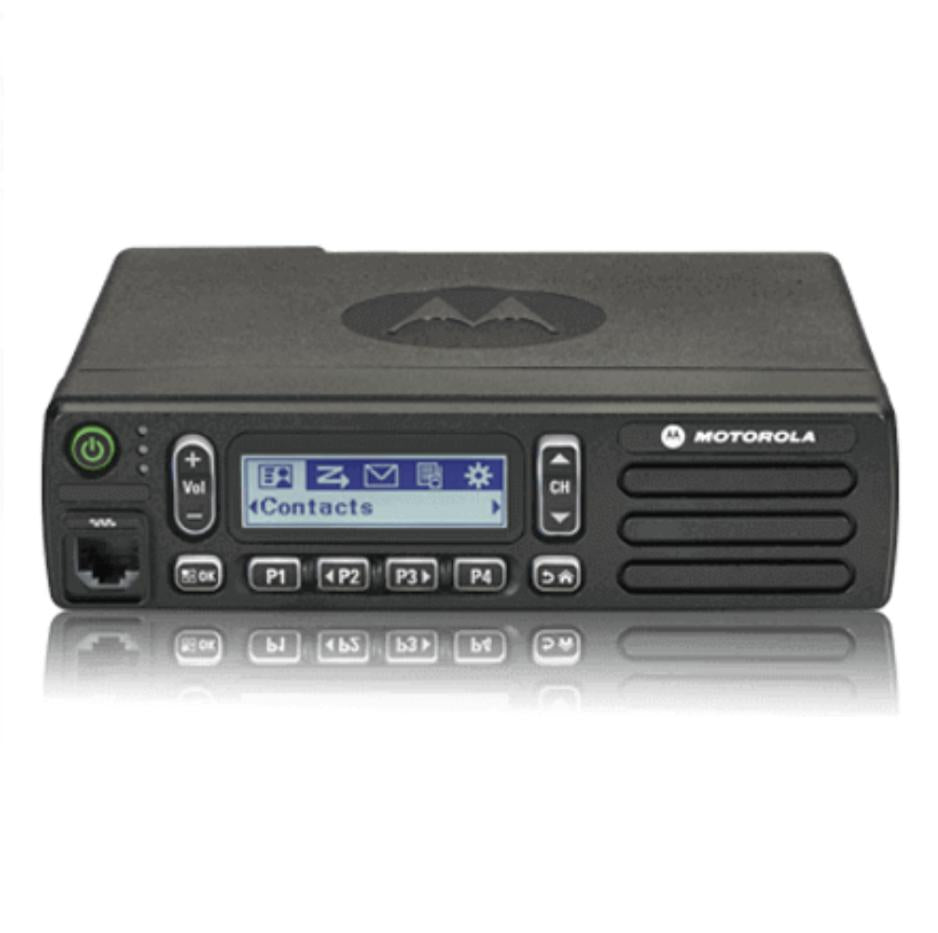

Motorola CM300D-UA40 UHF 40 Watts AAM01QPH9JC1AN Mobile Radio

 Motorola CM300D-UA40 UHF 40 Watts AAM01QPH9JC1AN Mobile Radio 99 Channels

The MOTOTRBO CM300d mobile radio is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The CM300d is designed for the everyday driver, so your workers can connect without distraction, whether they’re delivering cargo, dispatching trucks, or driving a school bus. The CM300d is easy to use and delivers clear communication for maximum efficiency of your operation.

• Analog with Digital Upgrade: Operates in both analog and digital modes, allowing for a smooth transition to digital when ready.
• THIS UNIT IS ANALOG
• High Power Output: 40W UHF for extended range and coverage.
• 99 Channels: Ample channels for various communication needs.
• Alphanumeric Display: Clear, high-contrast screen for easy viewing of caller ID and other important information.
• Durable Design: IP54 rated for dust and splash resistance, ensuring reliability in harsh environments.
• Transmit Interrupt: Allows for prioritization of critical communications.
• Voice Announcement: Provides audible confirmation of channel changes and other functions.

In the Box:

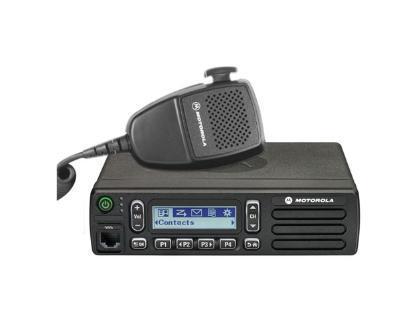

• CM300D-UA40 Mobile Radio
• Standard Microphone (PMMN4090)
• Mounting Bracket (RLN6469)
• Power Cable (HKLN4137)

General Specifications

• Channel Capacity: 99
• Typical RF Output:
  • High Power: 25-40 W
• Frequency: 403-470 MHz
• Dimensions (H x W x L): 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
• Weight: 2.9 lbs (1.3 kg)
• Current Drain:
  • Standby: 0.81 A max
  • Rx @ Rated Audio Transmit: 2 A max
• FCC Description:
  • 25-40 W: 14.5 A max

Receiver Specifications

• Frequency: 403-470 MHz
• Channel Spacing: 12.5 kHz / 25 kHz
• Frequency Stability (-30°C, +60°C, +25°C Ref): ± 0.5 ppm
• Analog Sensitivity (12 dB SINAD): 0.3 µV
• Digital Sensitivity (5% BER): 0.22 µV (typical)
• Intermodulation (TIA603D): 70 dB
• Adjacent Channel Selectivity (TIA603D): 70 dB @ 25 kHz
• Spurious Rejection (TIA603D): 70 dB
• Rated Audio: 4 W (Internal), 7.5 W (External - 8 ohms), 13 W (External - 4 ohms)
• Audio Distortion @ Rated Audio: 3% (typical)
• Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
• Audio Response: TIA603D
• Conducted Spurious Emissions (TIA603D): -57 dBm

Transmitter Specifications

• Frequency: 403-470 MHz
• Channel Spacing: 12.5 kHz / 25 kHz
• Frequency Stability (-30°C, +60°C, +25°C Ref): ± 0.5 ppm
• High Power Output: 25-40 W
• Modulation Limiting: ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz
• FM Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
• Conducted / Radiated Emission: -36 dBm < 1 GHz / -30 dBm > 1 GHz
• Adjacent Channel Power: -57 dBm
• Audio Response: TIA603D
• Audio Distortion: 3% (typical)
• FM Modulation: 12.5 kHz / 25 kHz
• 4FSK Digital Modulation: 1-25 W
• Digital Vocoder Type: AMBE+2
• Digital Protocol: DMR

Note

• 25 kHz may not be available in the U.S. for Part 90 operation due to the FCC’s narrow-banding requirements.
