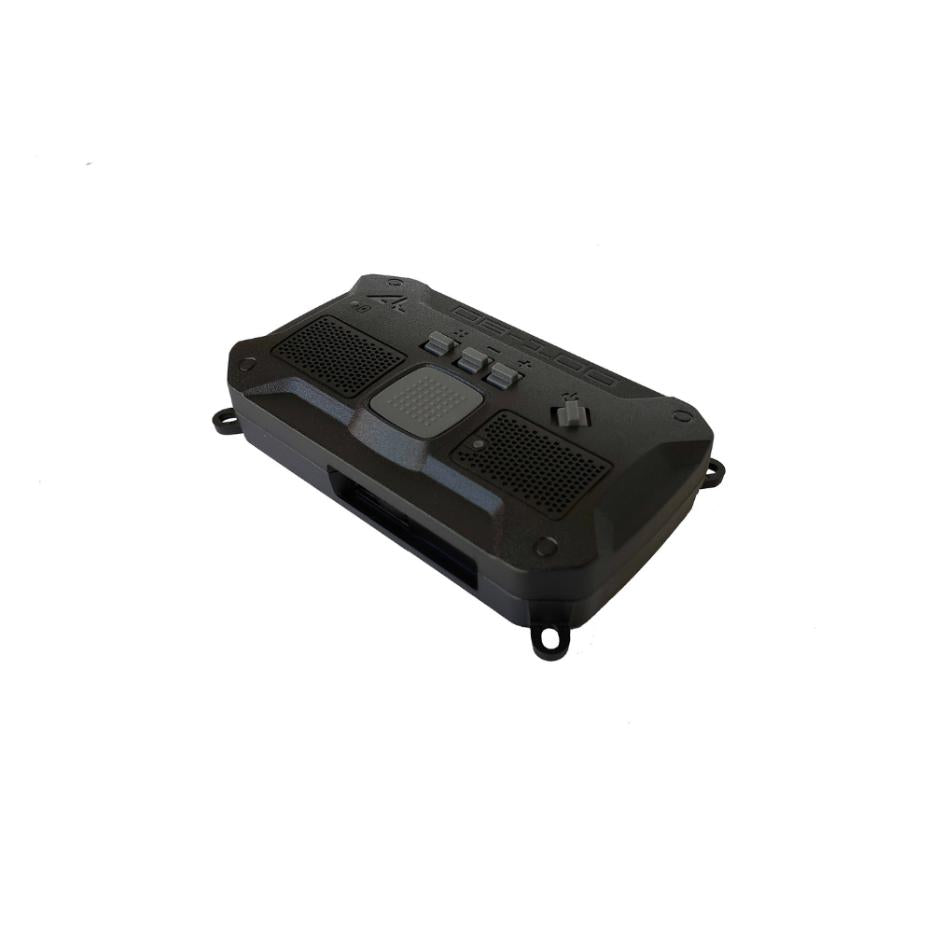

Motorola CW-DB1020 DLR Base Station Wireless Intercom

Motorola CW-DB1020 DLR Base Station Wireless Intercom

The Motorola CW-DB1020 is a digital desktop radio and wireless intercom designed to work seamlessly with the Motorola DLR1020 DLR1060 and DTR series radios. It offers clear, dependable, and secure radio communications using Frequency Hopping Spread Spectrum (FHSS) technology. This base station provides up to 300,000 square feet of coverage, making it ideal for communication between rooms or work teams12.

Key features:

License-free operation: No need for additional licenses to use.
Easy setup: Plug-and-play installation with no programming required.
Versatile mounting options: Can be desk or wall-mounted.
Battery backup: Up to 14 hours of operation without AC power.
Compatibility: Works with Motorola business radio audio accessories and the DRX1020 digital range extender for expanded coverage

General Specifications

• Transceiver: Motorola DLR1020
• Operating Frequency: 900 MHz ISM FHSS
• Channels: 2
• Power Supply: DC 5V 850mA
• Operating Voltage: 3.7V +/- 0.5V
• Battery: 1800mAh Li-Ion
• Backup Battery Life @ 5-5-90 Duty Cycle: 14 hours
• Transceiver FCC Designation: AZ489FT5870
• Transceiver IC Designation: 109U-89FT5870
• Dimensions (HxWxD): 6.8 x 4.3 x 1.5 inches
• Weight (without battery): 6.8 oz
• Talk Range: 250,000 sq ft / 20 floors
• Operating Temperature (Transceiver): -30°C to +60°C
• Charging Temperature: 0°C to +40°C
• Storage Temperature: -40°C to +85°C
